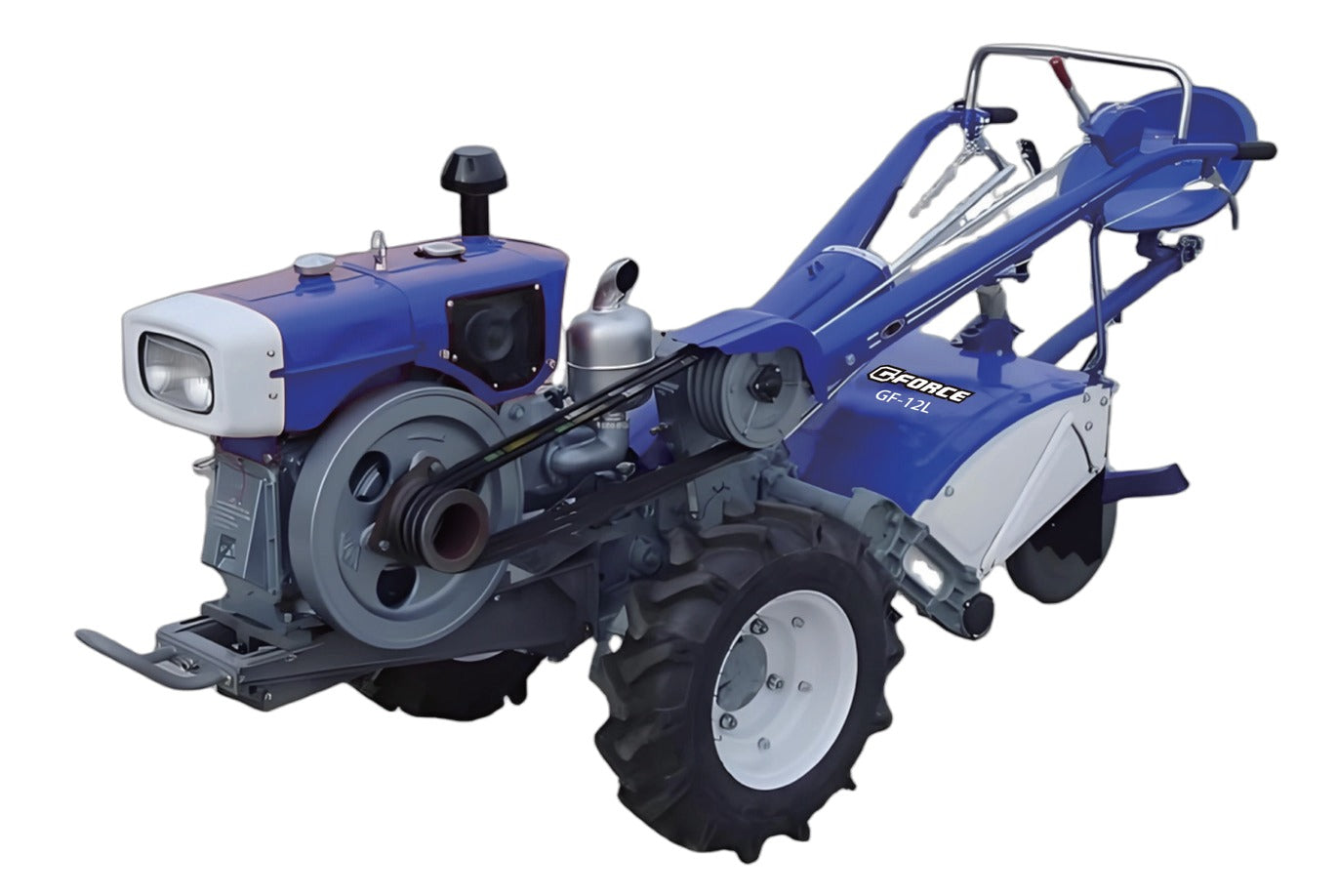

Walking Tractor GF-15L
Usually ships within 24 hours
Regular price
¥0.00
inc. VAT
Couldn't load pickup availability
Model: GF-15L
Product type: Walking Tractor
| Structure weight - Without rotavator (kg) | 363 |
|---|---|
| Structure weight - With rotavator | 468 |
| Working weight (with rotavator)(kg) | 508 |
| Overall Dimensions (L×W×H, mm) | 2680x960x1250 |
| Number of blades (PCS) | 18 |
| Rototilling width (mm) | 600 |
| Type of tractor | Single axle, dual-purpose for both traction & drive |
| Travelling speed - Forword (Km/h) | 1.4,2.5,4.1,5.3,9.4,15.3 |
| Travelling speed - Reverse | 1.1,3.8 |
| Tyre size | 6.00-12 |
| Wheel track (mm) | 800,740,640,580(normally use 800) |
| Ground Clearance (mm) | 185 |
| Min.turning radius | 0.9(without rotavator) |
| Engine Model | ZS1100N |
| Engine Type | Horizontal 4-stroke |
| Bore×Stroke (mm) | 100×115 |
| Displacement | 0.903 |
| Compression ratio | 19.5:1 |
| Turing speed of crankshaft (rpm) | 2000 |
| 1-hour rated output (KW/hp) | 10.5/14.3 |
| 12-hour rated output (KW/hp) | 9.8/13.33 |
| Specific fuel consumption (g/kw.h) | ≤250 |
| Specific lube oil consumption (g/kw.h) | ≤2.00 |
| Cooling mode | Condenser (Radiator) |
| Turning speed of rototilling shaft (rpm) | 188/300 |
