GUOMAI · 80-115HP Tractor

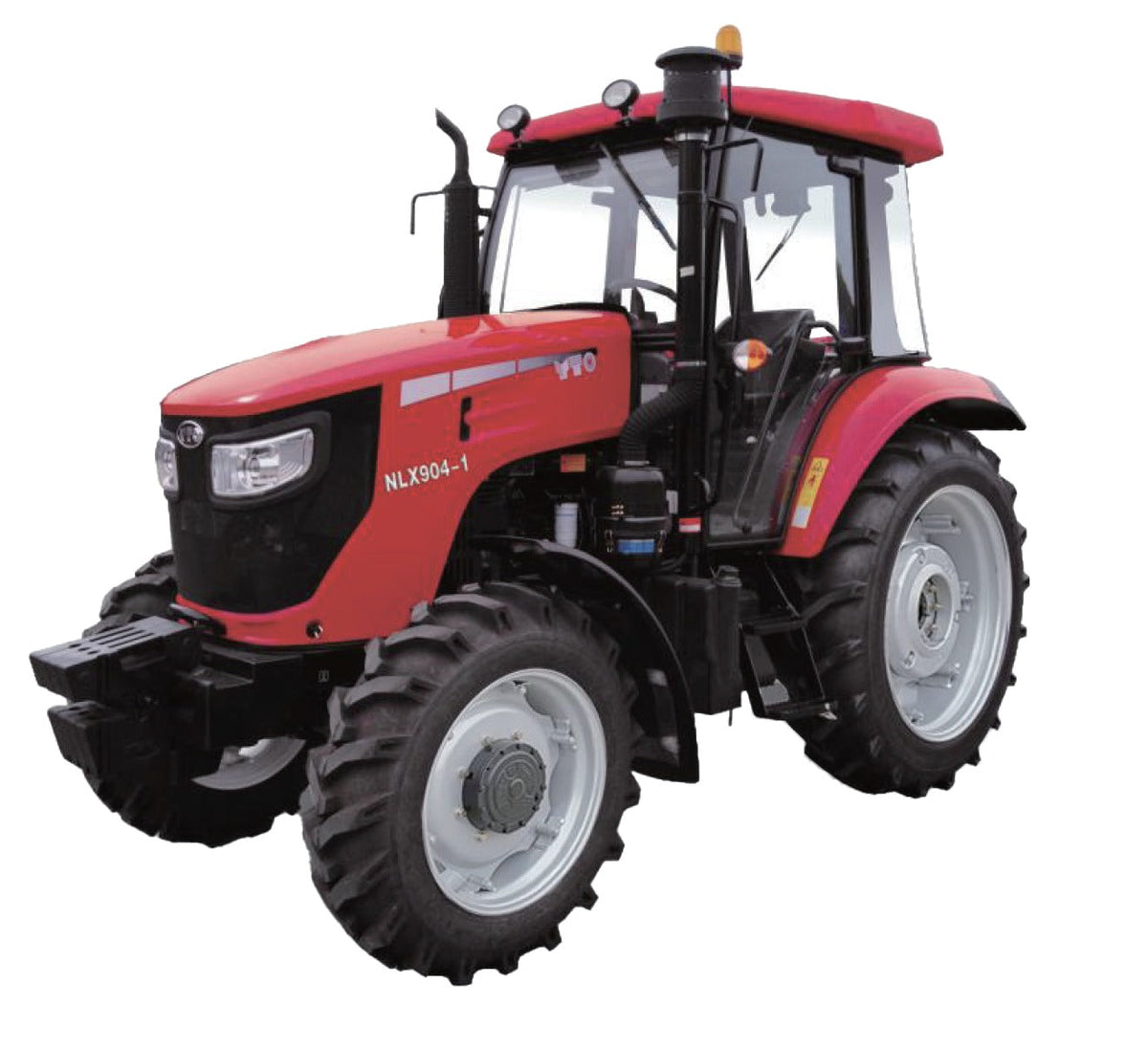

80-115HP Tractor NLX904-1
- Rated Power (kW/hp)66.1(90)
- Hydraulic Lift Capacity (kN)≥23
- Minimum Operating Mass (kg)3600
- Factory-direct supply, OEM / ODM available
- Export packing and worldwide shipping
- 12-month warranty with spare parts support
No online payment. Add several models to your list and request one combined quotation.
Your dedicated contact
Alex Chen
Regional Sales Manager · Overseas Dept.
Average response time: within 24 hours (Mon–Sat, GMT+8)
Model: NLX904-1
Product type: 80-115HP Tractor
| Engine type | 4 cylinder, naturally aspirated diesel engine |
|---|---|
| Rated Power (kW/hp) | 66.1(90) |
| Rated Engine Speed (rpm) | 2200 |
| Clutch | Independent, dual action |
| Gears | 12F+4R(Option12F+12R or 24F+8R) |
| Speed range (km/h) | 2.2-35.7 |
| Brake | Wet, disc |
| Rear PTO (rpm) | 540/1000 |
| Hydraulic Lift Capacity (kN) | ≥23 |
| Hydraulic output (set) | 2 or 3 |
| Overall Dimensions (L×W×H, mm) | 4450*1905*2755 |
| Wheelbase (mm) | 2314 |
| Ground Clearance (mm) | 430 |
| Wheel Track (F/R, mm) | 1430-1850/1400-1700 |
| Minimum Turning Radius (m) | 5.6±0.3 |
| Tyre (F/R) | 11.2-24/15.5-38 |
| Minimum Operating Mass (kg) | 3600 |
- Incoterms: EXW, FOB Shanghai / Nanjing, CIF, DAP
- Packing: steel frame + waterproof film, container loading (20GP / 40HQ)
- Lead time: 30–45 days after deposit (demo text)
- Documents: commercial invoice, packing list, B/L, certificate of origin
- 12-month warranty on main components
- Spare parts list and operator manual supplied with each unit
- Remote technical support; on-site training available on request
- OEM branding and custom configuration for distributors
Product brochure, full specification sheet and parts catalogue are available on request. Click Spec sheet (PDF) above and we will email them to you.
